FM-THERMO PB200 MULTI-CONDUCTOR CABLE

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:3*18~2*4AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
PB200-MULTI
Brand:
Fongming

Product Description

Description

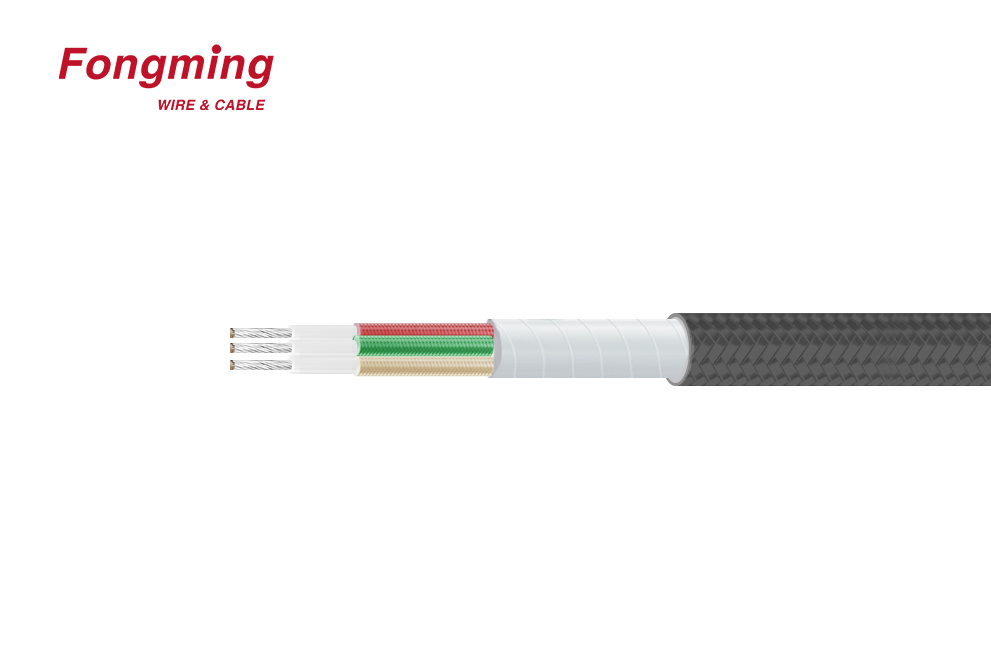

Name: Silicone Insulated PET Braid Jacket Cable

Model: PB200-MULTI

Size:3*18~2*4AWG

Feature

Rated Temperature: 200°C

Rated Voltage: 600V

Structure

Conductor: Tinned Copper

Insulation: Silicone Rubber

Color: White

Braid: Fiberglass

Color: See Color Table

Cabling&Filler(Optional):Fiberglass

Wrapping:PTFE Tape

Jacket: PET Yarn Braid With Silicone Resin Coating

Color: Black

硅胶涤纶

Size (AWG)	Conductor Structure (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Wrapping Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
*318**	7/0.39	1.17	0.76	2.7	0.25	3.2	0.2	7.1	0.25	7.4±0.5
*518**	7/0.39	1.17	0.76	2.7	0.25	3.2	0.2	8.8	0.25	9.1±0.5
*818**	7/0.39	1.17	0.76	2.7	0.25	3.2	0.2	11.8	0.25	12.1±0.5
*416**	7/0.49	1.47	0.76	3.0	0.25	3.5	0.2	8.7	0.25	9.0±0.5
*716**	7/0.49	1.47	0.76	3.0	0.25	3.5	0.2	10.7	0.25	11.0±0.5
*816**	7/0.49	1.47	0.76	3.0	0.25	3.5	0.2	11.8	0.25	12.1±0.5
*1216**	7/0.49	1.47	0.76	3.0	0.25	3.5	0.2	14.7	0.25	15.0±1.0
*1616**	7/0.49	1.47	0.76	3.0	0.25	3.5	0.2	16.7	0.25	17.0±1.0
*214**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	9.4	0.25	9.7±0.5
*314**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	10.1	0.25	10.4±0.5
*414**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	11.3	0.25	11.6±0.5
*714**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	14.0	0.25	14.3±0.5
*914**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	17.2	0.25	17.5±1.0
*1214**	7/0.61	1.83	1.14	4.1	0.25	4.6	0.2	19.3	0.25	19.6±1.0
*312**	19/0.47	2.35	1.14	4.6	0.25	5.1	0.2	11.2	0.25	11.5±10.5
*412**	19/0.47	2.35	1.14	4.6	0.25	5.1	0.2	12.5	0.25	12.8±0.5
*712**	19/0.47	2.35	1.14	4.6	0.25	5.1	0.2	15.5	0.25	15.8±1.0
*912**	19/0.47	2.35	1.14	4.6	0.25	5.1	0.2	19.1	0.25	19.4±1.0
*1212**	19/0.47	2.35	1.14	4.6	0.25	5.1	0.2	21.4	0.25	21.7±1.0
*310**	19/0.6	3.00	1.14	5.3	0.25	5.8	0.2	12.7	0.25	13.0±0.5
*410**	19/0.6	3.00	1.14	5.3	0.25	5.8	0.2	14.2	0.25	14.5±0.5
*710**	19/0.6	3.00	1.14	5.3	0.25	5.8	0.2	17.6	0.25	17.9±1.0
*1210**	19/0.6	3.00	1.14	5.3	0.25	5.8	0.2	24.3	0.25	24.6±1.0
*48**	54/0.45	3.81	1.52	6.9	0.25	7.4	0.2	18.1	0.25	18.4±1.0
*46**	84/0.45	4.76	1.52	7.8	0.25	8.3	0.2	20.2	0.25	20.5±1.0
*44**	133/0.45	6.80	1.52	9.8	0.25	10.3	0.2	25.1	0.25	25.4±1.0
*42**	259/0.41	8.36	1.52	11.4	0.25	11.9	0.2	28.9	0.25	29.1±1.0
*42/0**	416/0.45	11.63	2.03	15.7	0.25	16.2	0.2	39.3	0.25	39.6±1.0

Silicone PET Braided Cable 200C Flexible High Temperature Wire PET Yarn Braid Jacket Cable Silicone Resin Coated Multicore Wire Abrasion Resistant Silicone Cable Tinned Copper Silicone Power Cable Fiberglass Braided Core High Temp Wire PTFE Wrapped Multiconductor Cable 600V Flexible Motor Lead Wire Industrial Heater Silicone Braid Cable
