FM-THERMO KB200 MULTI-CONDUCTOR Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:3*16~12*10AWG

Availability:

Quantity:



Inquire Add to Basket

Model:
KB200-Multi
Brand:
Fongming

Product Description

Description

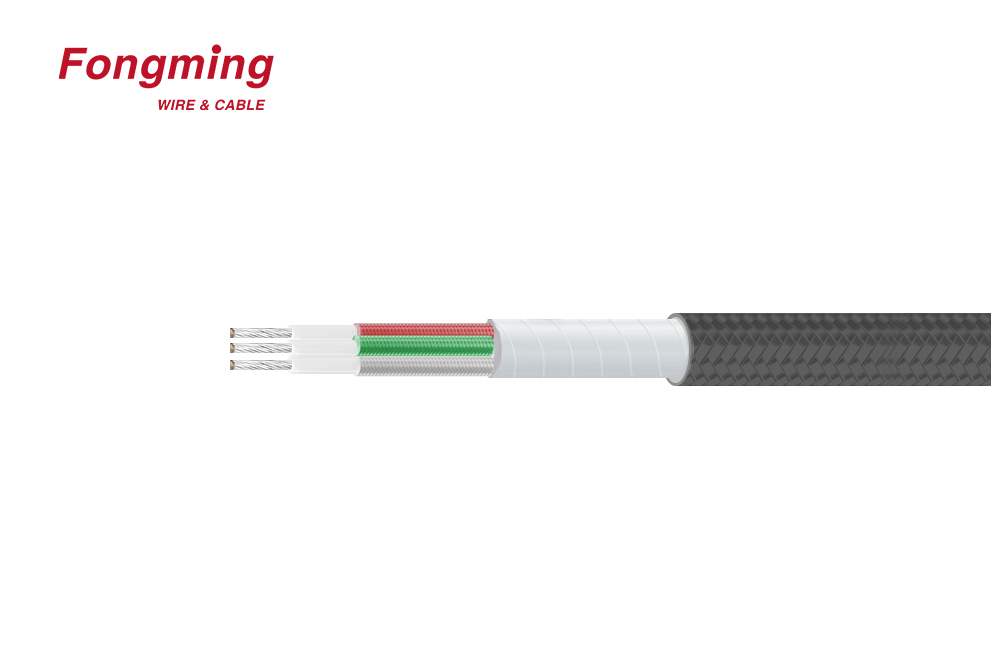

Name: Silicone Insulated Aramid Fiber Braid Jacket Cable

Model: KB200-Multi

Size: 3*16~12*10AWG

Feature

Rated Temperature: 200°C

Rated Voltage: 600V

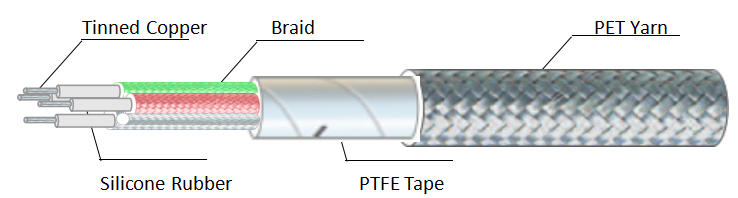

Structure

Conductor: Tinned Copper

Insulation: Silicone Rubber

Color: White

Braid: Fiberglass

Color: See Color Table

Cabling&Filler(Optional):Fiberglass

Wrapping:PTFE Tape

Jacket: Aramid Fiber Braid With Silicone Resin CoatingColor: Black

硅胶涤纶

Size (AWG)	Conductor Structure (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Wrapping Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
3*16	7/0.49	1.47	1.14	3.8	0.2	4.2	0.2	9.2	0.76	10.7±0.5
2*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	9.2	0.76	10.7±0.5
3*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	9.9	0.76	11.4±0.5
4*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	11.1	0.76	12.6±0.5
5*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	12.4	0.76	13.9±0.5
7*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	13.7	0.76	15.2±0.5
9*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	16.9	0.76	18.4±0.8
12*14	7/0.61	1.83	1.14	4.1	0.2	4.5	0.2	18.9	0.76	20.4±0.8
2*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	10.2	0.76	11.7±0.5
3*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	11.0	0.76	12.5±0.5
4*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	12.3	0.76	13.8±0.5
5*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	13.7	0.76	15.2±0.5
7*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	15.2	0.76	16.7±0.5
9*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	18.7	0.76	20.2±0.8
12*12	19/0.47	2.35	1.14	4.6	0.2	5.0	0.2	20.9	0.76	22.4±0.8
2*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	11.6	0.76	13.1±0.5
3*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	12.5	0.76	14.0±0.5
4*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	14.0	0.76	15.5±0.5
5*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	15.6	0.76	17.1±0.8
7*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	17.3	0.76	18.8±0.8
9*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	21.3	0.76	22.8±0.8
12*10	19/0.6	3.00	1.14	5.3	0.2	5.7	0.2	23.9	0.76	25.4±0.8
