TF250-Multi
Fongming
Description

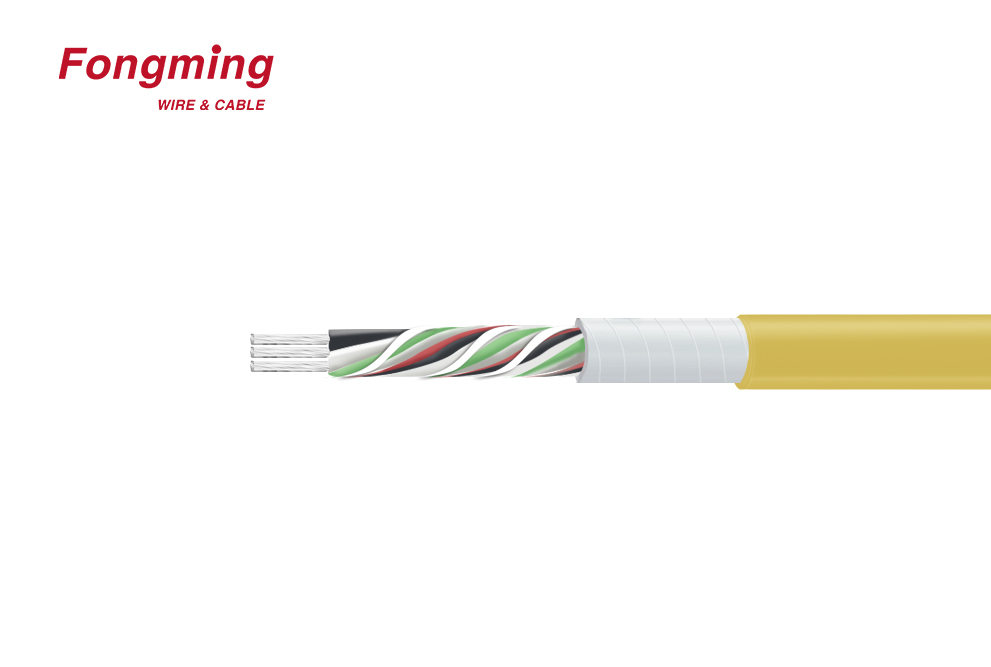

Name: Multi PFA Cable
Model:TF250-Multi
Size:3*24-4*8AWG
Feature
Rated Voltage:600V
Rated Temperature:250°C

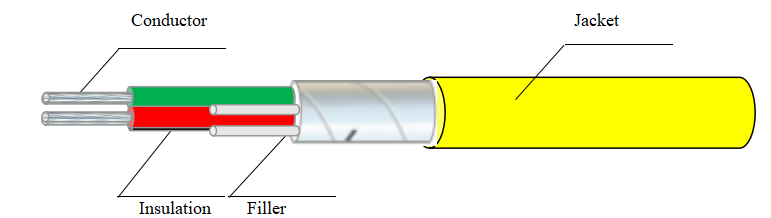

Structure
Conductor: Nickel Plated Copper3%
Insulation:Extruded PFA
Color: See Table
Filler:Fiberglass
Cabling& Wrapping:PTFE Tape
Jacket:PFA
Color:Translucent Yellow
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Wrapping Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) | Filler |
3*24 | 11/0.16 | 0.59 | 0.25 | 1.1 | 2.4 | 0.05 | 2.5 | 0.51 | 3.5±0.2 | No filler |
6*24 | 11/0.16 | 0.59 | 0.25 | 1.1 | 3.3 | 0.05 | 3.4 | 0.51 | 4.4±0.2 | 1 center filler 1.1 |
4*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 4.0 | 0.05 | 4.1 | 0.51 | 5.1±0.3 | 1 center filler with 4 fillers around |
7*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 5.4 | 0.05 | 5.5 | 0.51 | 6.5±0.3 | 1 center filler |
20*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 8.7 | 0.05 | 8.8 | 0.51 | 9.8±0.5 | 1 center filler |
4*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 4.7 | 0.05 | 4.8 | 0.51 | 5.8±0.3 | 1 center filler with 4 fillers around |
12*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 8.1 | 0.05 | 8.2 | 0.51 | 9.2±0.5 | No filler |
4*14 | 105/0.16 | 1.82 | 0.25 | 2.35 | 5.7 | 0.05 | 5.8 | 0.51 | 6.8±0.4 | 1 center filler with 4 fillers around |
12*14 | 105/0.16 | 1.82 | 0.25 | 2.35 | 9.8 | 0.05 | 9.9 | 0.51 | 10.9±0.5 | No filler |
4*12 | 65/0.254 | 2.27 | 0.25 | 2.80 | 6.8 | 0.05 | 6.9 | 0.51 | 7.9±0.4 | 1 center filler with 4 fillers around |
8*12 | 65/0.254 | 2.27 | 0.25 | 2.80 | 9.6 | 0.05 | 9.7 | 0.51 | 10.7±0.5 | 1 center filler |
4*10 | 105/0.254 | 3.3 | 0.25 | 3.8 | 9.2 | 0.05 | 9.3 | 0.51 | 10.3±0.5 | 1 center filler with 4 fillers around |
4*8 | 163/0.254 | 4.11 | 0.51 | 5.15 | 12.4 | 0.05 | 12.5 | 0.76 | 14.0±0.5 | 1 center filler with 4 fillers around |
Description
Name: Multi PFA Shield Cable
Model:TF250S-Multi
Size:4*24-12*10AWG
Feature
Rated Voltage:600V
Rated Temperature:250°C

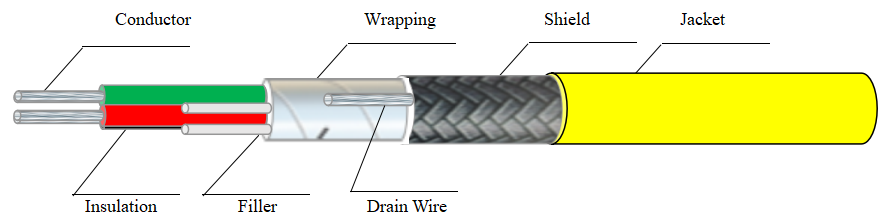

Structure
Conductor: Nickel Plated Copper3%
Insulation:Extruded PFA
Color: See Table
Filler:Fiberglass
Cabling& Wrapping:PTFE Tape
Drain Wire:26/0.16 Nickel Plated Copper3%
Shield:Nickel Plated Copper3%
Jacket:PFA
Color:Translucent Yellow
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Wrapping Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) | Filler |
4*24 | 11/0.16 | 0.59 | 0.25 | 1.1 | 2.7 | 0.05 | 2.8 | 0.2 | 3.2 | 0.51 | 4.2±0.2 | 1 center filler 0.5 4 fillers around 0.5 |
6*24 | 11/0.16 | 0.59 | 0.25 | 1.1 | 3.3 | 0.05 | 3.4 | 0.2 | 3.8 | 0.51 | 4.8±0.3 | 1 center filler 1.1 |
8*24 | 11/0.16 | 0.59 | 0.25 | 1.1 | 4.0 | 0.05 | 4.1 | 0.2 | 4.5 | 0.51 | 5.5±0.3 | 1 center filler 1.8 |
4*22 | 17/0.16 | 0.73 | 0.25 | 1.25 | 3.0 | 0.05 | 3.1 | 0.2 | 3.5 | 0.51 | 4.5±0.3 | 1 center filler 0.55 4 fillers around 0.55 |
6*22 | 16/0.16 | 0.71 | 0.25 | 1.20 | 3.6 | 0.05 | 3.7 | 0.2 | 4.1 | 0.51 | 5.1±0.3 | 1 center filler 1.20 |
2*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 3.3 | 0.05 | 3.4 | 0.2 | 3.8 | 0.51 | 4.8±0.3 | 2 fillers 1.2 |
3*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 3.6 | 0.05 | 3.7 | 0.2 | 4.1 | 0.51 | 5.1±0.3 | No filler |
4*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 4.0 | 0.05 | 4.1 | 0.2 | 4.5 | 0.51 | 5.5±0.3 | 1 center filler 0.7 4 fillers around 0.7 |
6*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 5.0 | 0.05 | 5.1 | 0.2 | 5.5 | 0.51 | 6.5 | 1 center filler 1.65 |
8*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 6.0 | 0.05 | 6.1 | 0.2 | 6.5 | 0.51 | 7.5 | 1 center filler 2.7 |
12*18 | 41/0.16 | 1.14 | 0.25 | 1.65 | 6.9 | 0.05 | 7.0 | 0.2 | 7.4 | 0.51 | 8.4 | 3+9 No filler |
2*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 3.9 | 0.05 | 4.0 | 0.2 | 4.4 | 0.51 | 5.4 | 2 fillers 0.8 |
3*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 4.2 | 0.05 | 4.3 | 0.2 | 4.7 | 0.51 | 5.7 | No filler |
4*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 4.7 | 0.05 | 4.8 | 0.2 | 5.2 | 0.51 | 6.2 | 1 center filler 0.8 4 fillers around 0.8 |
5*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 5.3 | 0.05 | 5.4 | 0.2 | 5.8 | 0.51 | 6.8 | 1 center filler 1.4 |
8*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 7.1 | 0.05 | 7.2 | 0.2 | 7.5 | 0.51 | 8.5 | 1 center filler 3.2 |
12*16 | 65/0.16 | 1.43 | 0.25 | 1.95 | 8.1 | 0.05 | 8.2 | 0.2 | 8.6 | 0.51 | 9.6 | 3+9 NO filler |
4*14 | 105/0.16 | 1.82 | 0.25 | 2.35 | 5.7 | 0.05 | 5.8 | 0.2 | 6.2 | 0.51 | 7.2 | 1 center filler 1.0 4 fillers around 1.0 |
8*14 | 105/0.16 | 1.82 | 0.25 | 2.35 | 8.6 | 0.05 | 8.7 | 0.2 | 9.1 | 0.51 | 10.1 | 1 center filler 3.9 |
12*14 | 105/0.16 | 1.82 | 0.25 | 2.35 | 9.8 | 0.05 | 9.9 | 0.2 | 10.3 | 0.51 | 11.3 | 3+9 NO filler |
4*12 | 65/0.254 | 2.27 | 0.25 | 2.8 | 6.8 | 0.05 | 6.9 | 0.2 | 7.3 | 0.51 | 8.3 | 1 center filler 1.2 4 fillers around 1.2 |
6*12 | 65/0.254 | 2.27 | 0.25 | 2.8 | 8.4 | 0.05 | 8.5 | 0.2 | 8.9 | 0.51 | 9.9 | 1 center filler 2.8 |
8*12 | 65/0.254 | 2.27 | 0.25 | 2.8 | 10.2 | 0.05 | 10.3 | 0.2 | 10.7 | 0.51 | 11.7 | 1 center filler 4.6 |
12*12 | 65/0.254 | 2.27 | 0.25 | 2.8 | 11.6 | 0.05 | 11.7 | 0.2 | 12.1 | 0.51 | 13.1 | 3+9 No filler |
4*10 | 105/0.254 | 3.3 | 0.25 | 3.8 | 9.2 | 0.05 | 9.3 | 0.2 | 9.7 | 0.51 | 10.7 | 1 center filler 1.6 4 fillers around 1.6 |
8*10 | 105/0.254 | 3.3 | 0.25 | 3.8 | 13.8 | 0.05 | 13.9 | 0.2 | 14.3 | 0.51 | 15.3 | 1 center filler 6.2 |
12*10 | 105/0.254 | 3.3 | 0.25 | 3.8 | 15.8 | 0.05 | 15.9 | 0.2 | 16.3 | 0.51 | 17.3 | 3+9 No filler |
