6TXL-2001-0
Description
Name:6TXL-2001-0
Size:24-8AWG
Feature
Ratings Voltage:50/60V
Rated temperature:-51~125°0
Standard:SAEJ1128

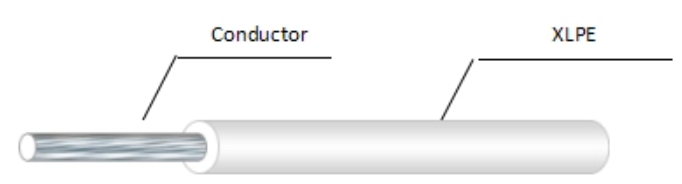

Structure
Conductor:Bare Cooper
Insulation:Extruded XLPE
Color:Black
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) |
20 | 7/0.32 | 0.96 | 0.74 | 2.4±0.1 |
18 | 7/0.39 | 1.17 | 0.76 | 2.7±0.1 |
16 | 19/0.3 | 1.50 | 0.81 | 3.1±0.1 |
14 | 19/0.37 | 1.85 | 0.89 | 3.6±0.2 |
12 | 19/0.48 | 2.40 | 0.94 | 4.4±0.2 |
10 | 37/0.43 | 3.01 | 1.04 | 5.1±0.3 |
8 | 57/0.43 | 4.11 | 1.09 | 6.3±0.3 |
