350C 300V Fiberglass Braid Wire

Color: Tan, Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc. Size:0.14mm2, 0.22mm2, 0.25mm2,0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2mm2, 2.5mm2, 4mm2

Availability:

Quantity:



Inquire Add to Basket

Model:
GW04-2B
Brand:
Fongming

Product Description

350C 300V Fiberglass Braid Wire

Description

Name:High Temperature Resistance Wire

Model:GW04-2B

Size:0.14-4.0mm2

Feature

Ratings Voltage:300V

Rated Temperature: 350℃

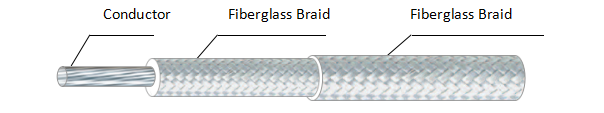

Structure

Conductor:Stranded Nickel Plated Copper,Nickel

Insulation:Fiberglass Braid 2Layers With Silicone Resin Coating

Size (mm2)	Conductor Structure	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)
0.14	7/0.16	0.48	0.25	0.98	0.2	1.4±0.1
0.22	7/0.2	0.6	0.25	1.10	0.2	1.5±0.1
0.25	7/0.23	0.69	0.25	1.19	0.2	1.6±0.1
0.5	7/0.3	0.9	0.25	1.40	0.2	1.8±0.1
0.75	11/0.3	1.15	0.25	1.65	0.2	2.1±0.1
1.0	14/0.3	1.30	0.25	1.80	0.2	2.2±0.1
1.5	21/0.3	1.59	0.25	2.09	0.25	2.6±0.2
2.0	28/0.3	1.83	0.25	2.33	0.25	2.8±0.2
2.5	35/0.3	2.05	0.25	2.55	0.25	3.1±0.2
4.0	56/0.3	2.60	0.25	3.10	0.25	3.6±0.2
