GW03-C, GW04-2B
Fongming
350C 300V Fiberglass Wrapped Wire
Description
Name:Fiberglass Insulated Wire
Model:GW03-C, GW04-C
Size:0.14-25.0mm2
Feature
Rated Voltage:300V
Rated Temperature: 350℃

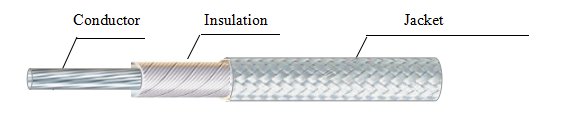

Structure
Conductor: Nickel Plated Copper,Pure Nickel
Insulation:Fiberglass Wrapping
Jacket:Fiberglass Braid With Silicone Resin Coating
Size mm2 | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) |
0.14 | 7/0.16 | 0.48 | 0.26 | 1 | 0.2 | 1.4±0.2 |
0.22 | 7/0.2 | 0.6 | 0.26 | 1.12 | 0.2 | 1.5±0.2 |
0.25 | 7/0.23 | 0.69 | 0.26 | 1.21 | 0.2 | 1.6±0.2 |
0.5 | 7/0.3 | 0.9 | 0.26 | 1.42 | 0.2 | 1.8±0.2 |
0.75 | 11/0.3 | 1.15 | 0.26 | 1.67 | 0.2 | 2.1±0.2 |
1.0 | 14/0.3 | 1.30 | 0.26 | 1.82 | 0.2 | 2.2 ±0.2 |
1.5 | 21/0.3 | 1.59 | 0.26 | 2.11 | 0.2 | 2.5±0.2 |
2.0 | 28/0.3 | 1.83 | 0.39 | 2.61 | 0.2 | 3.0±0.3 |
2.5 | 35/0.3 | 2.05 | 0.39 | 2.83 | 0.2 | 3.2±0.3 |
4.0 | 56/0.3 | 2.60 | 0.39 | 3.38 | 0.2 | 3.8±0.3 |
6.0 | 84/0.3 | 3.18 | 0.39 | 3.96 | 0.25 | 4.5±0.3 |
10.0 | 140/0.3 | 4.50 | 0.52 | 5.54 | 0.25 | 6.0±0.5 |
16.0 | 224/0.3 | 5.70 | 0.52 | 6.74 | 0.25 | 7.2±0.5 |
25.0 | 350/0.3 | 7.15 | 0.52 | 8.19 | 0.25 | 8.7±0.5 |
