350C 300V CGG03-P Fiberglass Shield Cable

Color: As per customized
Size: 2 Cores, 3 Cores, 4 Cores, 5 Cores * 26AWG, 24AWG, 22AWG, 20AWG 16AWG,14AWG
Package: As per customized
Quantity:
Inquire Add to Basket

  • CGG03-P

  • Fongming

350C 300V CGG03-P Fiberglass Cable


Description

Name: Fiberglass Cable

Model: CGG03-P

Size: 2*26~5*14AWG


Feature

Ratings Voltage: 300V

Rated temperature: 350℃

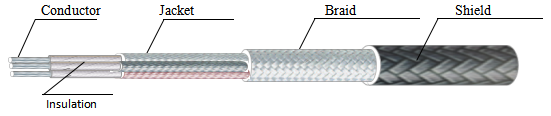

Structure

Conductor:Stranded Nickel Plated Copper 3%

Insulation: Fiberglass Wrapping With Silicone Resin Coating

Braid: Fiberglass Braid With Silicone Resin Coating

Cabling&Braid:Fiberglass Braid

Shield: Stainless Steel Wire


CGG-P

Cores

Size

AWG

Conductor

Structure

Diameter

(mm)

Serve

Thickness

(mm)

Diameter

(mm)

Braid

Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

OD

(mm)

2

26

7/0.16

0.48

0.26

1.00

0.2

1.4

0.2

3.2

0.2

3.4±0.3

3

0.2

3.4

0.2

3.6±0.3

4

0.2

3.8

0.2

4.0±0.3

5

0.2

4.2

0.2

4.4±0.3

2

24

7/0.2

0.60

0.26

1.12

0.2

1.5

0.2

3.4

0.2

3.6±0.3

3

0.2

3.6

0.2

3.8±0.3

4

0.2

4.0

0.2

4.2±0.3

5

0.2

4.5

0.2

4.7±0.3

2

22

7/0.254

0.76

0.26

1.28

0.2

1.7

0.2

3.8

0.2

4.0±0.3

3

0.2

4.1

0.2

4.3±0.3

4

0.2

4.5

0.2

4.7±0.3

5

0.2

5.0

0.2

5.2±0.3

2

20

10/0.254

0.93

0.26

1.45

0.2

1.9

0.2

4.2

0.2

4.4±0.3

3

0.2

4.5

0.2

4.7±0.3

4

0.2

5.0

0.2

5.2±0.3

5

0.2

5.5

0.2

5.7±0.3

2

18

16/0.254

1.17

0.26

1.69

0.2

2.1

0.2

4.6

0.2

4.8±0.3

3

0.2

4.9

0.2

5.1±0.3

4

0.2

5.5

0.2

5.7±0.3

5

0.2

6.1

0.2

6.3±0.3

2

16

26/0.254

1.50

0.26

2.02

0.2

2.4

0.2

5.2

0.2

5.4±0.3

3

0.2

5.6

0.2

5.8±0.3

4

0.2

6.2

0.2

6.2±0.3

5

0.2

6.9

0.2

7.1±0.3

2

14

41/0.254

1.88

0.26

2.40

0.2

2.8

0.2

6.0

0.2

6.2±0.3

3

0.2

6.4

0.2

6.6±0.3

4

0.2

7.2

0.2

7.4±0.5

5

0.2

8.0

0.2

8.2±0.5
