350C 300/500V GG27-P Fiberglass Shield Cable

Color: As per customized
Size: 2 Cores, 3 Cores, 4 Cores, 5 Cores * 26AWG, 24AWG, 22AWG, 20AWG 16AWG,14AWG
Package: As per customized

Quantity:



Inquire Add to Basket

Model:
GG27-P
Brand:
Fongming

Product Description

350C 300/500V GG27-P Fiberglass Shield Cable

Description

Name:High Temperature ResistanceCable

Model:GG27-P

Size:3*16~4*18AWG

Feature

Ratings Voltage: 300/500V

Rated temperature: 350℃

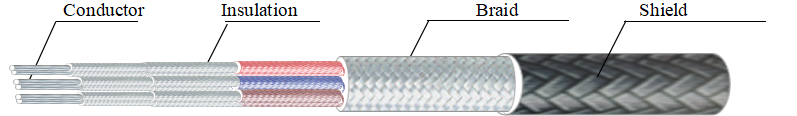

Structure

Conductor:Stranded Nickel Plated Copper27%

Insulation:Fiberglass Braid 3Layers With Silicone Resin Coating

Cabling&Braid:Fiberglass Braid

Shield:Stainless Steel Wire

微信截图_20201210102033

Cores	Size AWG	Conductor Structure	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	OD (mm)
2	26	7/0.16	0.48	0.6	1.7	0.2	3.8	0.2	4.0±0.3
3						0.2	4.1	0.2	4.3±0.3
4						0.2	4.5	0.2	4.7±0.3
5						0.2	5.0	0.2	5.2±0.3
2	24	7/0.2	0.60	0.6	1.8	0.2	4.0	0.2	4.2±0.3
3						0.2	4.3	0.2	4.5±0.3
4						0.2	4.7	0.2	4.9±0.3
5						0.2	5.3	0.2	5.5±0.3
2	22	7/0.254	0.76	0.6	2.0	0.2	4.4	0.2	4.6±0.3
3						0.2	4.7	0.2	4.9±0.3
4						0.2	5.2	0.2	5.4±0.3
5						0.2	5.8	0.2	6.0±0.3
2	20	10/0.254	0.93	0.6	2.1	0.2	4.6	0.2	4.8±0.3
3						0.2	4.9	0.2	5.1±0.3
4						0.2	5.5	0.2	5.7±0.3
5						0.2	6.1	0.2	6.3±0.3
2	18	16/0.254	1.17	0.6	2.4	0.2	5.2	0.2	5.4±0.3
3						0.2	5.6	0.2	5.8±0.3
4						0.2	6.2	0.2	6.4±0.3
5						0.2	6.9	0.2	7.1±0.3
2	16	26/0.254	1.50	0.6	2.7	0.2	5.8	0.2	6.0±0.3
3						0.2	6.2	0.2	6.4±0.3
4						0.2	6.9	0.2	7.1±0.5
5						0.2	7.7	0.2	7.9±0.5
2	14	41/0.254	1.88	0.6	3.1	0.2	6.6	0.2	6.8±0.5
3						0.2	7.1	0.2	7.3±0.5
4						0.2	7.9	0.2	8.1±0.5
5						0.2	8.8	0.2	9.0±0.5
