350C 300/500V GG04 Fiberglass Cable
Home » Products » Customized Wire&Cable » 350C 300/500V GG04 Fiberglass Cable

350C 300/500V GG04 Fiberglass Cable

Color: As per customized
Size: 2 Cores, 3 Cores, 4 Cores, 5 Cores * 26AWG, 24AWG, 22AWG, 20AWG 16AWG,14AWG
Package: As per customized

  • GG03
  • Fongming
Product Description

350C 300/500V GG04 Fiberglass Cable


Description

Name: Fiberglass Cable

Model: CGG04

Size: 2*26~5*14AWG


Feature

Ratings Voltage: 600V

Rated temperature: 350℃

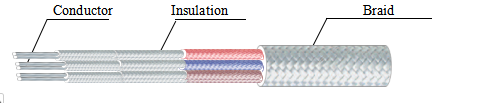

Structure

Conductor:Stranded Pure Nickel Plated Copper

Insulation: Fiberglass Braid With Silicone Resin Coating

Cabling&Braid:Fiberglass Braid


GG04

Cores

Size

AWG

Conductor

Structure

Diameter

(mm)

Insulation

Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

OD

(mm)

2

26

7/0.16

0.48

0.6

1.7

0.2

3.8±0.3

3

0.2

4.1±0.3

4

0.2

4.5±0.3

5

0.2

5.0±0.3

2

24

7/0.2

0.60

0.6

1.8

0.2

4.0±0.3

3

0.2

4.3±0.3

4

0.2

4.7±0.3

5

0.2

5.3±0.3

2

22

7/0.25

0.75

0.6

2.0

0.2

4.4±0.3

3

0.2

4.7±0.3

4

0.2

5.2±0.3

5

0.2

5.8±0.3

2

20

11/0.25

0.96

0.6

2.1

0.2

4.6±0.3

3

0.2

4.9±0.3

4

0.2

5.5±0.3

5

0.2

6.1±0.3

2

18

17/0.25

1.19

0.6

2.4

0.2

5.2±0.3

3

0.2

5.6±0.3

4

0.2

6.2±0.3

5

0.2

6.9±0.3

2

16

27/0.25

1.50

0.6

2.7

0.2

5.8±0.3

3

0.2

6.2±0.3

4

0.2

6.9±0.3

5

0.2

7.7±0.5

2

14

42/0.25

1.87

0.6

3.1

0.2

6.6±0.3

3

0.2

7.1±0.5

4

0.2

7.9±0.5

5

0.2

8.8±0.5
