250C 600V TGGT04-P Cable

Color: As per customized
Size: 2 Cores, 3 Cores, 4 Cores, 5 Cores * 26AWG, 24AWG, 22AWG, 20AWG 16AWG,14AWG
Package: As per customized
  • TGGT04-P
  • Fongming
Product Description

250C 600V TGGT04-P Cable


Description

Name:TGGT Cable

Model:TGGT04-P

Size:3*16~4*18AWG


Feature

Ratings Voltage: 600V

Rated temperature: 250℃

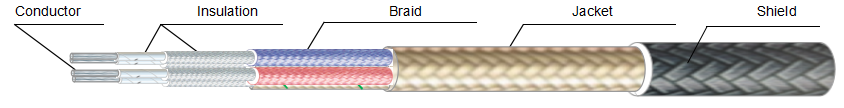

Structure

Conductor:Stranded Nickel

Insulation:PTFE tape Fiberglass Braid With Silicone Resin Coating

Braid:Fiberglass Braid With Silicone Resin Coating

Jacket:Fiberglass Braid With Silicone Resin Coating

Shield:Stainless Steel Wire


微信截图_20201210140225


Cores

Size

AWG

Conductor

Structure

Diameter

(mm)

PTFE

Thickness

(mm)

Diameter

(mm)

Fiberglass

Thickness

(mm)

Diameter

(mm)

Braid

Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

(mm)

Shield

Thickness

(mm)

OD

(mm)

2

26

7/0.16

0.48

0.2

0.88

0.2

1.28

0.2

1.7

0.2

3.8

0.2

4.0±0.3

3

0.2

4.1

0.2

4.3±0.3

4

0.2

4.5

0.2

4.7±0.3

5

0.2

5.0

0.2

5.2±0.3

2

24

7/0.2

0.60

0.2

1.0

0.2

1.4

0.2

1.8

0.2

4.0

0.2

4.2±0.3

3

0.2

4.3

0.2

4.5±0.3

4

0.2

4.7

0.2

4.9±0.3

5

0.2

5.3

0.2

5.5±0.3

2

22

7/0.254

0.76

0.2

1.16

0.2

1.56

0.2

2.0

0.2

4.4

0.2

4.6±0.3

3

0.2

4.7

0.2

4.9±0.3

4

0.2

5.2

0.2

5.4±0.3

5

0.2

5.8

0.2

6.0±0.3

2

20

10/0.254

0.93

0.2

1.33

0.2

1.73

0.2

2.2

0.2

4.8

0.2

5.0±0.3

3

0.2

5.1

0.2

5.3±0.3

4

0.2

5.7

0.2

5.9±0.3

5

0.2

6.3

0.2

6.5±0.3

2

18

16/0.254

1.17

0.2

1.57

0.2

1.97

0.2

2.4

0.2

5.2

0.2

5.4±0.3

3

0.2

5.6

0.2

5.8±0.3

4

0.2

6.2

0.2

6.4±0.3

5

0.2

6.9

0.2

7.1±0.3

2

16

26/0.254

1.50

0.3

2.1

0.2

2.5

0.2

3.0

0.2

6.4

0.2

6.6±0.3

3

0.2

6.9

0.2

7.1±0.3

4

0.2

7.6

0.2

7.8±0.5

5

0.2

8.5

0.2

8.7±0.5

2

14

41/0.254

1.88

0.3

2.48

0.2

2.88

0.2

3.3

0.2

7.0

0.2

7.2±0.5

3

0.2

7.5

0.2

7.7±0.5

4

0.2

8.4

0.2

8.6±0.5

5

0.2

9.3

0.2

9.5±0.5
