TGGT03-P
Fongming
250C 300V TGGT03-P Cable
Description
Name:TGGT-P Cable
Model:TGGT03-P
Size:3*16~4*18AWG
Feature
Ratings Voltage: 300V
Rated temperature: 250℃

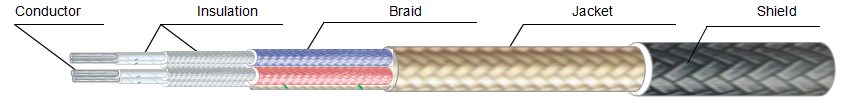

Structure
Conductor:Stranded Nickel Plated Copper3%
Insulation:PTFE tape Fiberglass Braid With Silicone Resin Coating
Braid:Fiberglass Braid With Silicone Resin Coating
Jacket:Fiberglass Braid With Silicone Resin Coating
Shield:Stainless Steel Wire
Cores | Size AWG | Conductor Structure | Diameter (mm) | PTFE Thickness (mm) | Diameter (mm) | Fiberglass Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | OD (mm) |
2 | 26 | 7/0.16 | 0.48 | 0.1 | 0.68 | 0.2 | 1.08 | 0.2 | 1.5 | 0.2 | 3.4 | 0.2 | 3.6±0.3 |
3 | 0.2 | 3.6 | 0.2 | 3.8±0.3 | |||||||||
4 | 0.2 | 4.0 | 0.2 | 4.2±0.3 | |||||||||
5 | 0.2 | 4.5 | 0.2 | 4.7±0.3 | |||||||||
2 | 24 | 7/0.2 | 0.60 | 0.1 | 0.8 | 0.2 | 1.2 | 0.2 | 1.6 | 0.2 | 3.6 | 0.2 | 3.8±0.3 |
3 | 0.2 | 3.9 | 0.2 | 4.1±0.3 | |||||||||
4 | 0.2 | 4.2 | 0.2 | 4.4±0.3 | |||||||||
5 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||||||
2 | 22 | 7/0.254 | 0.76 | 0.1 | 0.96 | 0.2 | 1.36 | 0.2 | 1.8 | 0.2 | 4.0 | 0.2 | 4.2±0.3 |
3 | 0.2 | 4.3 | 0.2 | 4.5±0.3 | |||||||||
4 | 0.2 | 4.7 | 0.2 | 4.9±0.3 | |||||||||
5 | 0.2 | 5.3 | 0.2 | 5.5±0.3 | |||||||||
2 | 20 | 10/0.254 | 0.93 | 0.1 | 1.13 | 0.2 | 1.53 | 0.2 | 1.9 | 0.2 | 4.2 | 0.2 | 4.4±0.3 |
3 | 0.2 | 4.5 | 0.2 | 4.7±0.3 | |||||||||
4 | 0.2 | 4.9 | 0.2 | 5.1±0.3 | |||||||||
5 | 0.2 | 5.5 | 0.2 | 5.7±0.3 | |||||||||
2 | 18 | 16/0.254 | 1.17 | 0.1 | 1.37 | 0.2 | 1.77 | 0.2 | 2.2 | 0.2 | 4.8 | 0.2 | 5.0±0.3 |
3 | 0.2 | 5.1 | 0.2 | 5.3±0.3 | |||||||||
4 | 0.2 | 5.7 | 0.2 | 5.9±0.3 | |||||||||
5 | 0.2 | 6.3 | 0.2 | 6.5±0.3 | |||||||||
2 | 16 | 26/0.254 | 1.50 | 0.2 | 1.9 | 0.2 | 2.3 | 0.2 | 2.7 | 0.2 | 5.8 | 0.2 | 6.0±0.3 |
3 | 0.2 | 6.2 | 0.2 | 6.4±0.3 | |||||||||
4 | 0.2 | 6.9 | 0.2 | 7.1±0.5 | |||||||||
5 | 0.2 | 7.7 | 0.2 | 7.9±0.5 | |||||||||
2 | 14 | 41/0.254 | 1.88 | 0.2 | 2.28 | 0.2 | 2.68 | 0.2 | 3.1 | 0.2 | 6.6 | 0.2 | 6.8±0.5 |
3 | 0.2 | 7.1 | 0.2 | 7.3±0.5 | |||||||||
4 | 0.2 | 7.9 | 0.2 | 8.1±0.5 | |||||||||
5 | 0.2 | 8.8 | 0.2 | 9.0±0.5 |
