200C 600V FEP Insulated Electrical Heating Wire
Description
Name:Electrical Heating Wire
Feature
MAX.Voltage:600V
Rated Temperature: 200℃

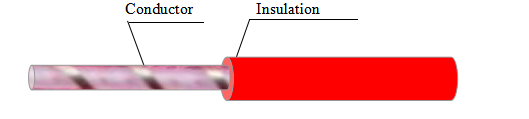

Structure
Conductor: Ni-Cr
Insulation:Extruded FEP
Conductor Structure | Circling Over Diameter (mm) | Jacket Thickness (mm) | O.D | Conductor Resistance (Ω/m) |
1/0.1 | 0.8±0.1 | 0.5 | 1.8±0.2 | 405±5% |
1/0.1 | 0.8±0.1 | 0.5 | 1.8±0.2 | 300±5% |
1/0.15 | 0.9±0.1 | 0.5 | 1.9±0.2 | 200±5% |
1/0.15 | 0.9±0.1 | 0.5 | 1.9±0.2 | 150±5% |
1/0.2 | 1.0±0.1 | 0.5 | 2.0±0.2 | 100±5% |
1/0.2 | 1.0±0.1 | 0.5 | 2.0±0.2 | 75±5% |
1/0.25 | 1.1±0.1 | 0.5 | 2.1±0.2 | 50±5% |
1/0.3 | 1.2±0.1 | 0.5 | 2.2±0.2 | 30±5% |
