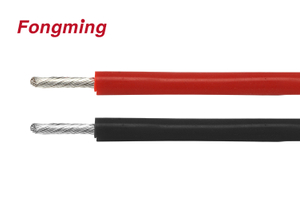

150C 300V UL3152 Silicone Heater Wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc Size: 32AWG,30AWG,28AWG,26AWG,24AWG,22AWG Package: 305m/roll

Availability:

Quantity:



Inquire Add to Basket

Model:
UL3152
Brand:
Fongming

Product Description

150C 300V UL3152 Silicone Heater Wire

Description

Name:Silicone Insulated Wire

Model:AWM 3152

Size:32~22AWG

Feature

Ratings Voltage:300V

Rated Temperature: 150℃

Structure

Conductor: Aramid+Alloy Spirally

Insulation:Extruded Silicone Rubber

Color:Blue,Brown,Black,White,Red,Green,Yellow

Standard:UL758、UL1581

Size (AWG)	Conductor Construction (No./mm)	Insulation lthickness (mm)	Note
32	Aramid+0.203（Alloy）	≥1.14	Resistance wire circle of aramid fiber number greater than 20 laps / 25.4 mm
30	Aramid+0.254（Alloy）
28	Aramid+0.320（Alloy）
26	Aramid+0.400（Alloy）
24	Aramid+0.510（Alloy）
22	Aramid+0.640（Alloy）

UL3152 UL3152 Wire Silicone Heater Wire 150C Silicone Wire 300V Silicone Heater Wire UL3152 Silicone Wire UL3152 Silicone Cable Silicone Heater Cable Heater Cable Flexible Silicone Cable
