UL1971
Fongming
150C 125V UL1971 Multi FEP Cable
Description
Name: Muti FEP Wire
Model: AWM 1971
Size: 2*18~7*14AWG
Feature
Rated Voltage: 125V
Rated temperature: 150℃

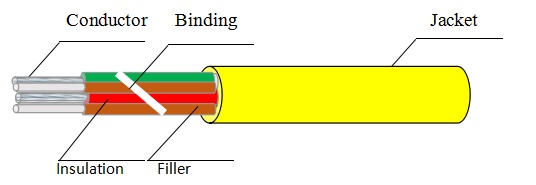

Structure
Conductor: Tinned Copper, Nickel Plated Copper
Insulation: Extruded FEP
Filler: Fiberglass With FEP insulated
Binding: Polyester Yarn
Shield: Optional
Jacket: FEP
Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.25 | 3.9±0.2 |
3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.25 | 4.2±0.2 |
4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.25 | 4.6±0.3 |
5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.25 | 5.1±0.3 |
6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.25 | 5.4±0.3 |
7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.25 | 5.6±0.3 |
2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.25 | 4.5±0.2 |
3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.25 | 4.8±0.2 |
4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.25 | 5.3±0.3 |
5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.25 | 5.9±0.3 |
6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.25 | 6.1±0.3 |
7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.25 | 6.5±0.3 |
2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.25 | 5.3±0.3 |
3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.25 | 5.6±0.3 |
4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.25 | 6.3±0.3 |
5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.25 | 7.0±0.4 |
6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.25 | 7.2±0.4 |
7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.25 | 7.7±0.4 |
