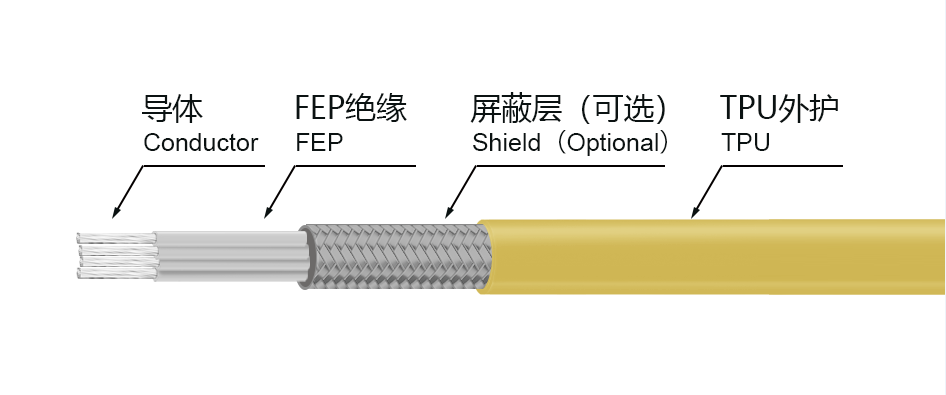

105C 600V UL20952FEP Insulated TPU Jacket Cable

CSA/CUL

AWM I A

Rated Temperature

105℃

Rated Voltage

600V

AWG

Conductor

Structure

Core

Insulation

Thickness

(mm)

Diameter

(mm)

Cabling

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

（Without Shield）

(mm)

Shield Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

Diameter

（With Shield）

(mm)

18

7/0.39

2

0.25

1.70

3.40

1.14

5.8±0.2

0.2

3.9

1.14

6.2±0.2

3

3.70

6.1±0.2

4.2

6.5±0.2

4

4.10

6.5±0.2

4.6

6.9±0.2

5

4.60

7.0±0.3

5.1

7.4±0.3

6

4.80

7.2±0.3

5.3

7.6±0.3

7

5.10

7.5±0.3

5.6

7.9±0.3

16

19/0.3

2

0.25

2.00

4.00

1.14

6.4±0.2

0.2

4.5

1.14

6.8±0.2

3

4.30

6.7±0.3

4.8

7.1±0.3

4

4.80

7.2±0.3

5.3

7.6±0.3

5

5.40

7.8±0.3

5.9

8.2±0.3

6

5.60

8.0±0.3

6.1

8.4±0.3

7

6.00

8.4±0.3

6.5

8.8±0.3

14

19/0.37

2

0.25

2.40

4.80

1.14

7.2±0.3

0.2

5.3

1.14

7.6±0.3

3

5.20

7.6±0.3

5.7

8.0±0.3

4

5.80

8.2±0.3

5.3

8.6±0.3

5

6.50

8.9±0.5

7.0

9.3±0.5

6

6.70

9.1±0.5

7.2

9.5±0.5

7

7.20

9.6±0.5

7.7

10.0±0.5
