AWM
Fongming

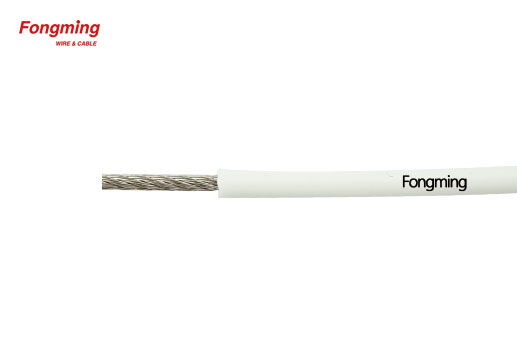

105C 600V CSA XLPE Wire
Description
Name: XLPE Wire
Model: AWM
Size: 32~4/0AWG
Feature
Rated Voltage: 600V
Rated temperature: 105℃
Structure
Conductor: Tinned Copper, Nickel Plated Copper
Insulation: Extruded XLPE
Size AWG | Conductor Construction (No./mm) | Insulation Thickness | Diameter |
32 | 7/0.08 | 0.76 | 1.8±0.1 |
30 | 7/0.1 | 1.9±0.1 | |
28 | 7/0.127 | 2.0±0.1 | |
26 | 7/0.16 | 2.1±0.1 | |
24 | 11/0.16 | 2.2±0.1 | |
22 | 17/0.16 | 2.4±0.1 | |
20 | 26/0.16 | 2.6±0.1 | |
18 | 16/0.254 | 2.8±0.1 | |
16 | 26/0.254 | 3.1±0.1 | |
14 | 41/0.254 | 3.5±0.1 | |
12 | 65/0.254 | 4.0±0.1 | |
10 | 103/0.254 | 4.8±0.2 | |
8 | 163/0.254 | 1.14 | 6.5±0.2 |
6 | 260/0.254 | 1.52 | 8.3±0.3 |
4 | 413/0.254 | 9.7±0.3 | |
2 | 168/0.5 | 11.4±0.3 | |
1 | 212/0.5 | 2.03 | 13.4±0.5 |
1/0 | 268/0.5 | 14.5±0.5 | |
2/0 | 342/0.5 | 15.9±0.5 | |
3/0 | 430/0.5 | 17.3±0.5 | |
4/0 | 538/0.5 | 18.9±0.5 |
