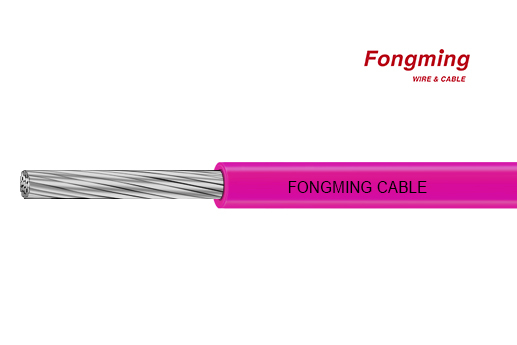

250C 600V UL11756 PTFE Wire
Description
Name: PTFE Wire
Model: AWM 11756
Size:50-10AWG
Feature
Rated Voltage: 600V
Rated temperature: 250℃
Structure
Conductor: Silver Plated Copper,Nickel Plated Copper,Nickel,Ni-Cr
Insulation: Extruded PTFE
Standard: UL758、UL1581
Size AWG | Conductor Construction (No./mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) |
50 | 1/0.0251 | 0.0251 | 0.13 | 0.35±0.05 |
48 | 1/0.0315 | 0.0315 | 0.35±0.05 | |
46 | 1/0.0399 | 0.0399 | 0.35±0.05 | |
44 | 1/0.051 | 0.051 | 0.35±0.05 | |
42 | 1/0.064 | 0.064 | 0.35±0.05 | |
40 | 1/0.079 | 0.079 | 0.40±0.05 | |
38 | 1/0.102 | 0.102 | 0.40±0.05 | |
36 | 7/0.05 | 0.15 | 0.45±0.05 | |
34 | 7/0.06 | 0.18 | 0.50±0.05 | |
32 | 7/0.08 | 0.24 | 0.55±0.05 | |
30 | 7/0.1 | 0.30 | 0.60±0.05 | |
28 | 7/0.127 | 0.38 | 0.70±0.05 | |
26 | 7/0.16 | 0.48 | 0.80±0.05 | |
24 | 7/0.2 | 0.60 | 0.90±0.05 | |
22 | 7/0.254 | 0.76 | 1.05±0.05 | |
20 | 7/0.32 | 0.96 | 1.25±0.05 | |
18 | 7/0.39 | 1.17 | 1.50±0.05 | |
16 | 19/0.3 | 1.50 | 1.80±0.05 | |
14 | 19/0.37 | 1.85 | 2.15±0.10 | |
12 | 19/0.48 | 2.40 | 2.70±0.10 | |
10 | 37/0.43 | 3.01 | 3.35±0.10 |
